M 1:2000

Pianta Nuovissima,
2020


Newly drawn map of Rome, that's based on multiple sources:

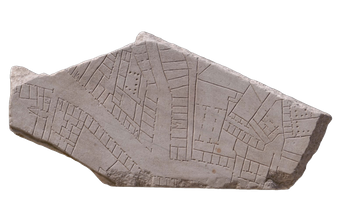

Forma Urbis Severiana
(203-209 a.D.),
Nuova Pianta di Roma
by G. B. Nolli (1748),

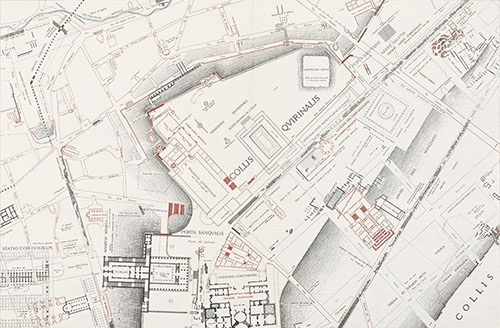

Forma Urbis Romae
by Rodolfo Lanciani (1901),
Atlas of Ancient Rome
by Andrea Carandini et al. (2012),

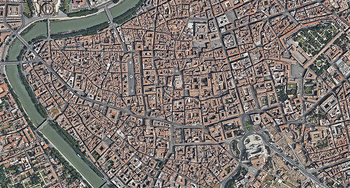

Google Earth
and other individual sources. Black lines indicate existing structures, grey hatches show lost buildings since 1748 (Nolli) and red lines reconstruct ancient structures whose remains are partly visible today (not completed).


Large drawing here.
